Overview
Density: 12-24kg/m³
Width: 1200mm
Thickness: 50/75/100/200mm
Material: Fiber Glass Wool
Place of Origin: China
Available size
|
Density |
Thickness |
Width |
Conductivity |
R-Value |
Packing |
PKG/40’HQ |
|
(kg/m3) |
(mm) |
(mm) |
(W/m.k) |
(㎡.K/W) |
(pcs/PKG) |
(NO#) |
|
12 |
50 |
1200 |
0.039 |
1.20 |
1 |
Loading Qty. Please consult |
|
12 |
75 |
1200 |
0.039 |
1.90 |
1 |
|
|
12 |
100 |
1200 |
0.039 |
2.50 |
1 |
|
|
12 |
150 |
1200 |
0.039 |
3.80 |
1 |
|
|
12 |
200 |
1200 |
0.039 |
5.00 |
1 |
|
|
16 |
50 |
1200 |
0.038 |
1.30 |
1 |
|
|
16 |
75 |
1200 |
0.038 |
1.90 |
1 |
|
|
16 |
100 |
1200 |
0.038 |
2.60 |
1 |
|
|
24 |
50 |
1200 |
0.035 |
1.40 |
1 |
|
|
24 |
75 |
1200 |
0.035 |
2.10 |
1 |
|
|
24 |
100 |
1200 |
0.035 |
2.80 |
1 |
Conductivity Value tested under temperature in 23℃
Consult your local sales representative for other available sizes and specification
Physical Properties
|
Tested Content |
Tested Method |
Tested Value |
|
Density |
ASTM C612 |
16kgs/m³ |
|
Thickness |
GB/T 17795-2008 |
50mm |
|
Average diameter of fibers |
GB/T 17795-2008 |
6.8μm |
|
Coefficient of Heat Conductivity |
EN12667 |
0.038W/m.K |
|
Thermal Resistance |
ASTM C653 |
1.30m2.K/W |
|
Average NRC |
EN ISO 354 |
1.00 |
|
Maximum Service Temperature |
ASTM C411 |
170℃ |
|
Corrosion Resistance |
ASTM C665 |
No Chemical Reaction |
|
Mold Resistance |
ASTM C665 |
Mildew proof |
|
Moisture Absorption |
ASTM C1104 |
Less 3% by weight |
|
Humidity veneration Rate |
ASTM E96 |
Max 0.013g/24Hours.m2 |
|
Non-Combustibility |
ASTM E84 |
Flame Propagation:25;Flame Diffustivity:50 |

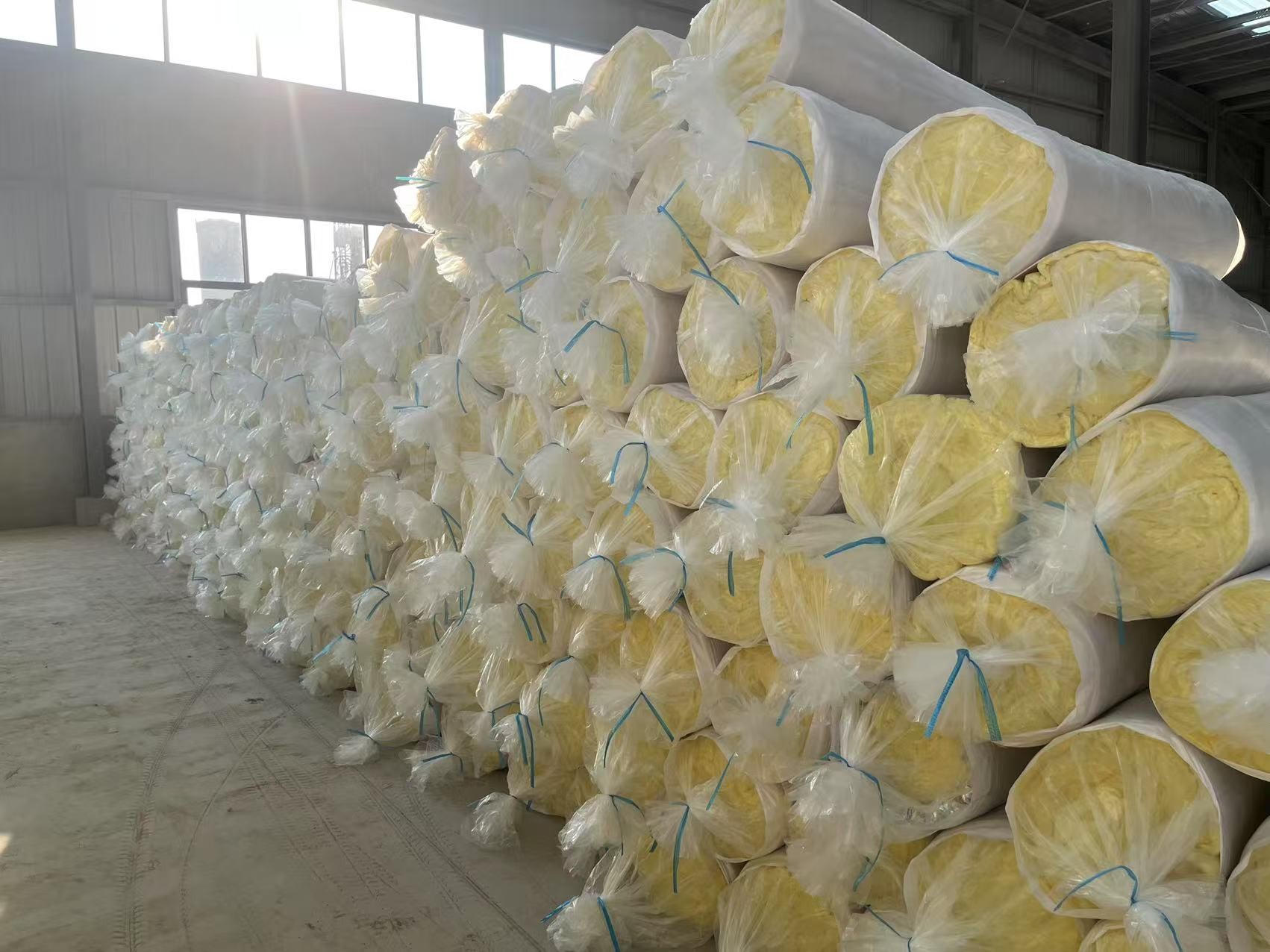

Packaging
Glass wool roll is packed by vacuumed packing, inner packing is PVC bag, Outside packing is woven fabric bag. It will save transportation cost and save storage space.
